NHS MEDICAL CENTRE · UK & IRELAND COVERAGE
Drone inspection on 24 September. Completed Chartered Surveyor report delivered on 27 September. Clear evidence and repair priorities for an NHS medical centre in Scotland.
The full inspection-to-report handover took three calendar days, including the weekend. Delivery was ahead of the 5–10 working days advised, giving the property team earlier access to the findings and recommended priorities.
This was the turnaround achieved on this project. Timing for other instructions is confirmed individually and depends on scope, weather, access and surveyor availability.
Rotorgraph Surveys carried out a drone roof inspection at an NHS medical centre in Scotland following reports of internal leaks. The GP practice provides NHS primary care services, and the inspection was commissioned through its facilities-management contractor. The commission combined high-resolution aerial photography with a Chartered Surveyor Roof Condition Report, giving the property team a structured basis for reviewing visible defects and planning its next steps.
The building brings together a slate-covered main roof, parapet gutters, lower flat roofs and a rear extension with rooflights. Looking at each area in isolation would miss the relationships between roof slopes, drainage routes and adjoining structures. Our inspection recorded those connections as well as the close-up details.
Based in West Yorkshire, Rotorgraph Surveys travels throughout the UK and Ireland to provide thorough drone roof inspections and Chartered Surveyor Roof Condition Reports. This Scottish project shows how we coordinate site attendance, detailed image capture and professional reporting for facilities managers and property owners beyond our home region.
The visit was arranged through a facilities-management contractor, with attendance updates and weather checks before travel. RAMS and a pre-flight risk assessment were provided in advance, and a dedicated spotter formed part of the agreed operational scope.
On site, the Practice Manager’s knowledge of the internal leaks helped focus the inspection. The roof key, separate image folders and reference panoramas then gave the surveyor a consistent way to relate the photographs to each part of the building.
For clients managing properties across the UK and Ireland, this combines one coordinated instruction with clear communication, organised evidence and a professional written assessment.
A walkthrough with the Practice Manager identified three reported internal leak locations: two associated with opposite sides of the main building and one in the rear extension. These were marked on a roof key to help the surveyor relate the photographic evidence to the affected internal areas.
The photographs were organised into separate folders for the main building, left and right lower flat roofs, and rear extension and linking roofs. Reference 360 panoramas provided additional orientation, while the individual inspection photographs remained the primary visual evidence.
The roof key records where leaks were reported inside the building. It does not, by itself, establish where rainwater enters the roof. That distinction helps keep the assessment focused on evidence rather than assumptions.
The completed report assessed the photographs by roof section and set out priorities for repair, maintenance and renewal. The following is a summary of its principal conclusions.

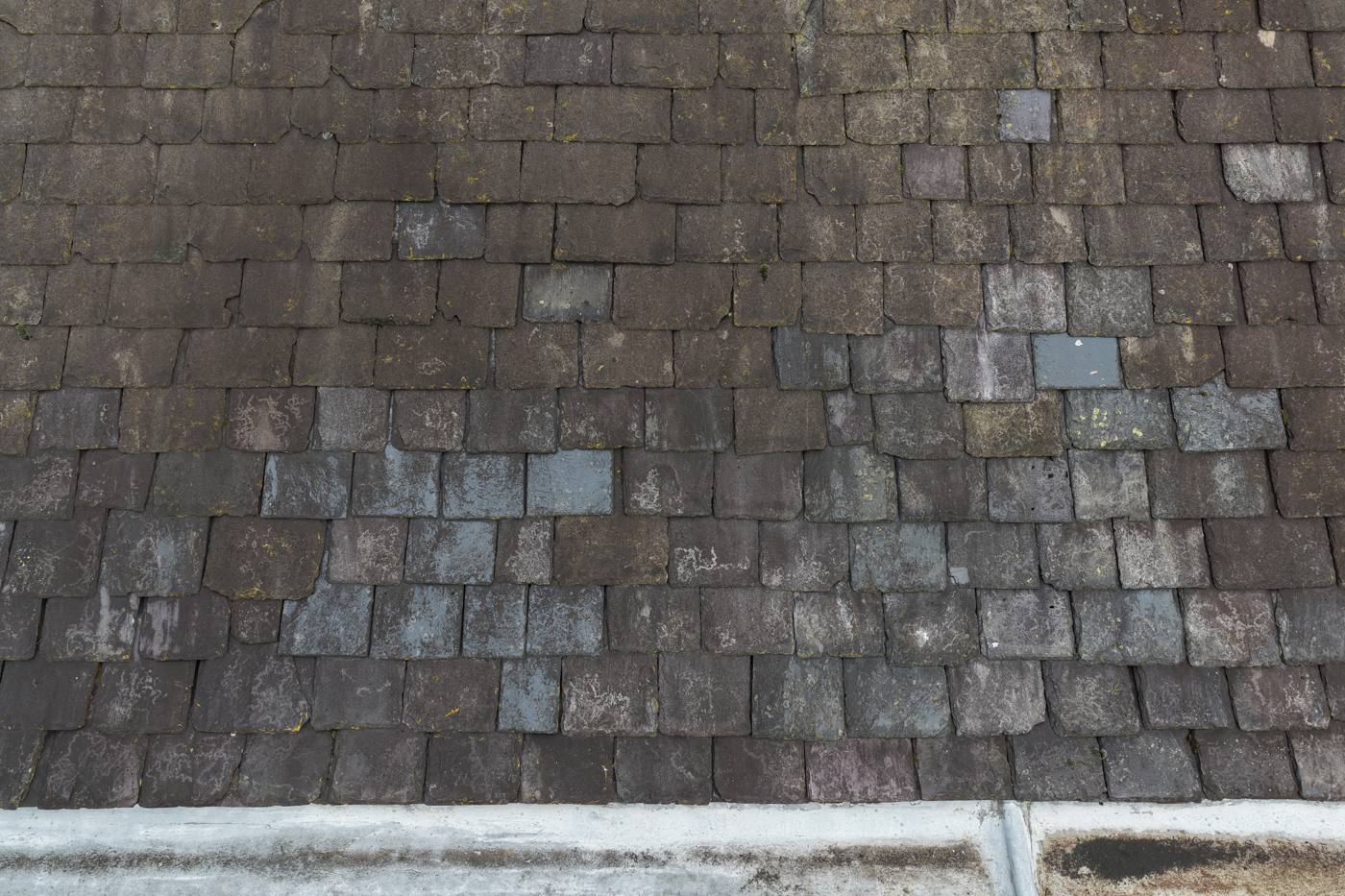

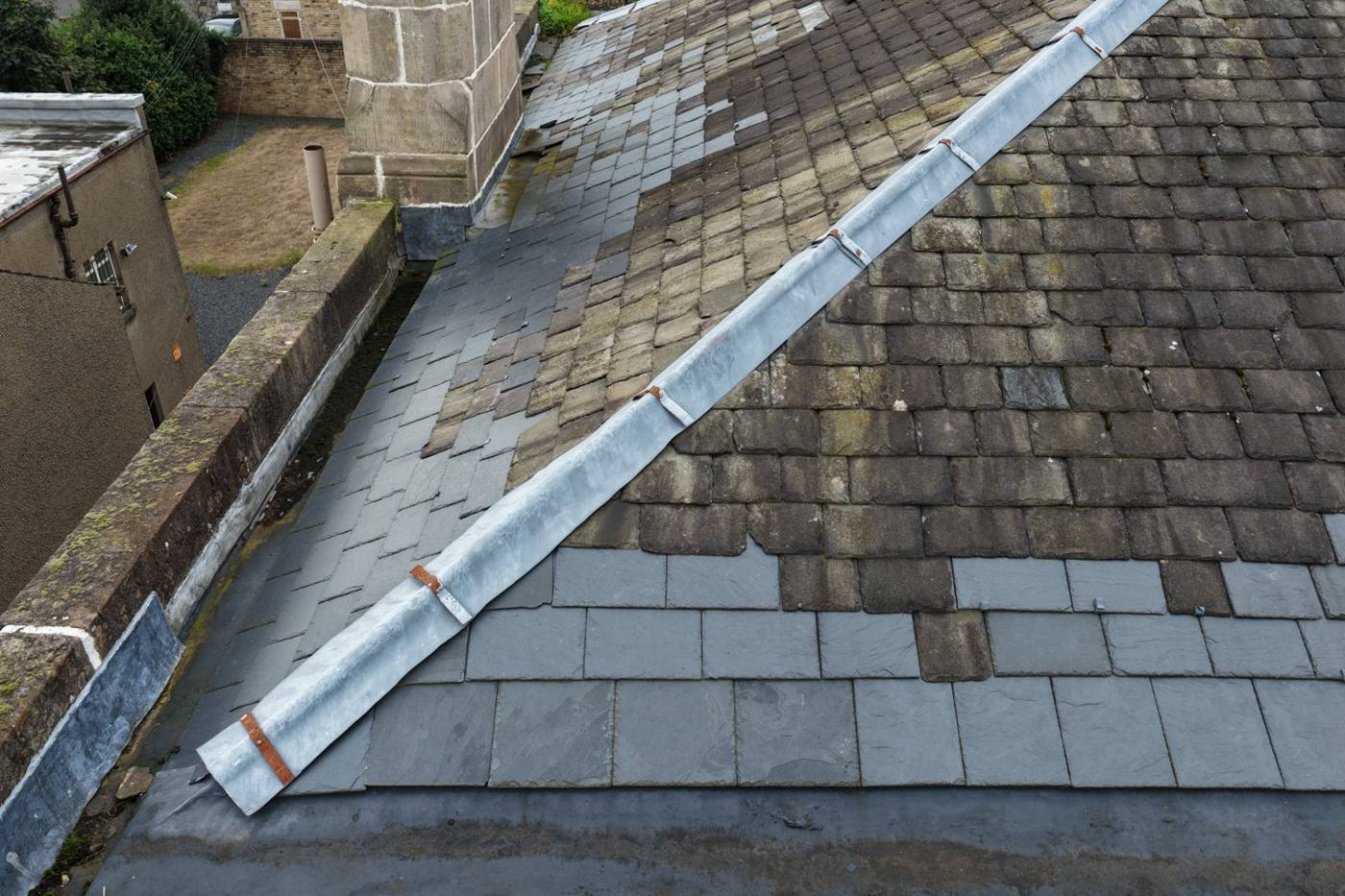

The surveyor assessed the main roof as generally poor, with damaged and slipping slates, varied previous repairs, deteriorated hip details and heavily repaired box gutters. Damaged coverings required attention before winter 2026, alongside gutter clearance and interim repairs. The report recommended planning to strip and recover the main roof in 2027.

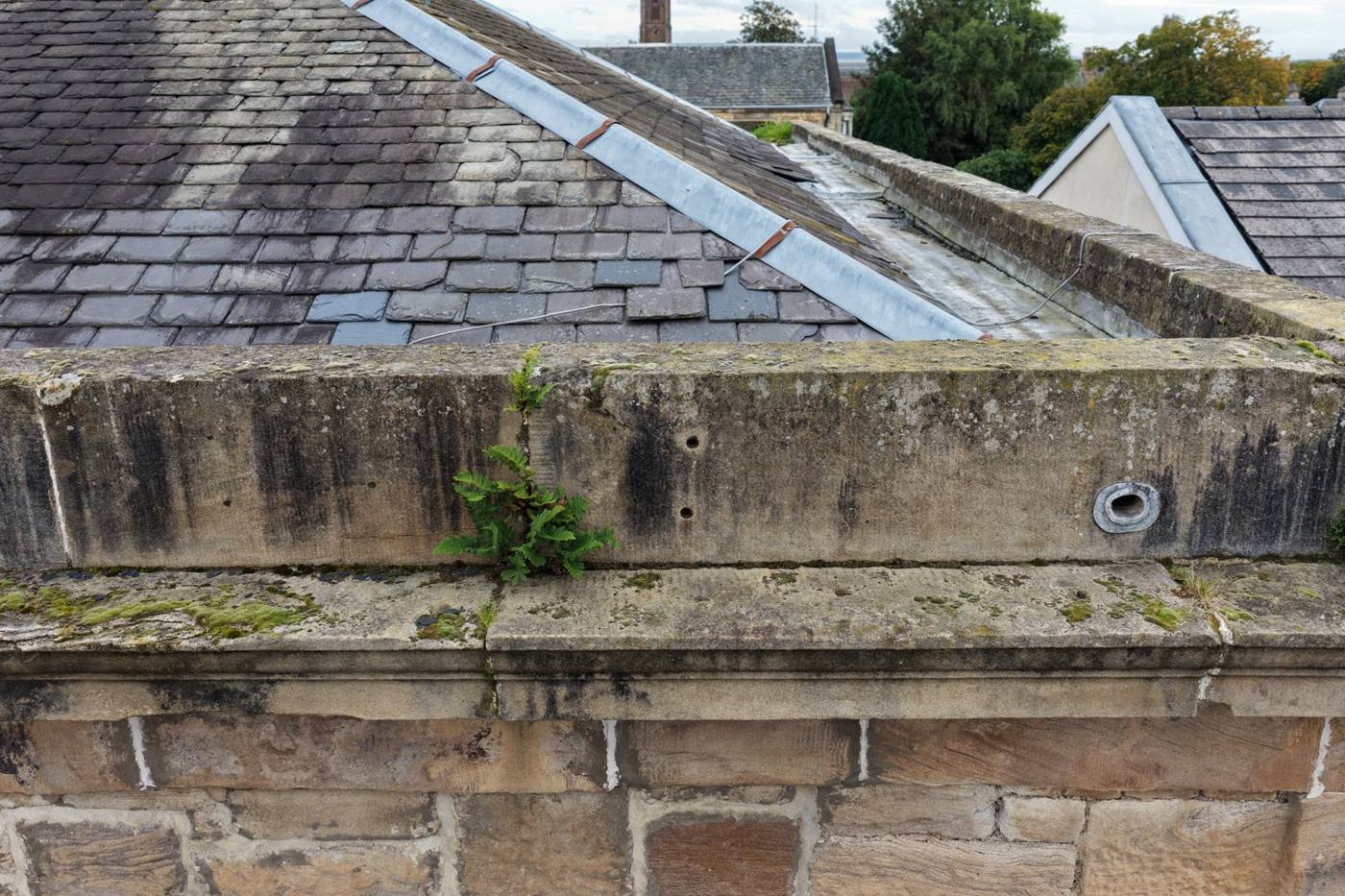

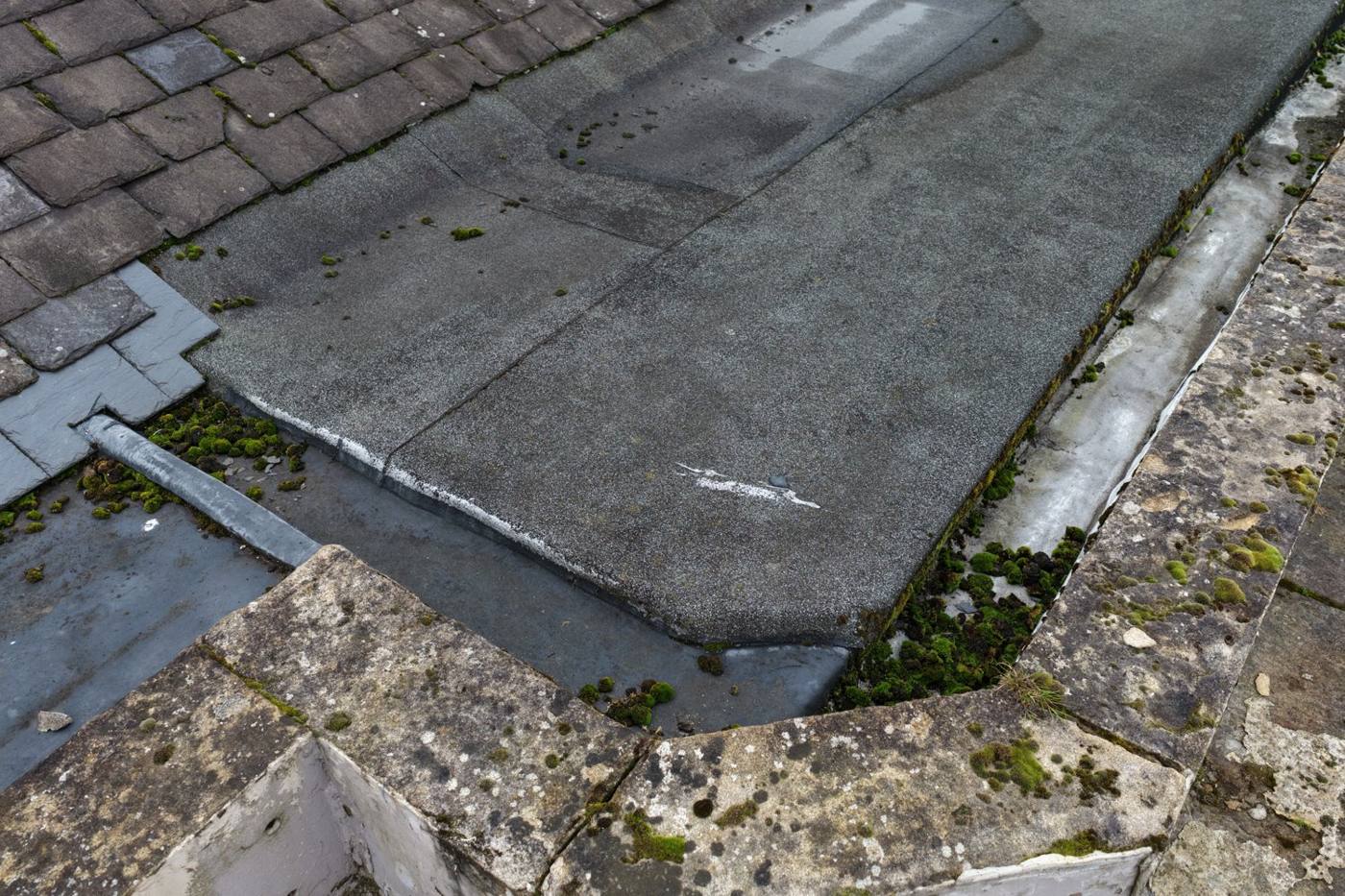

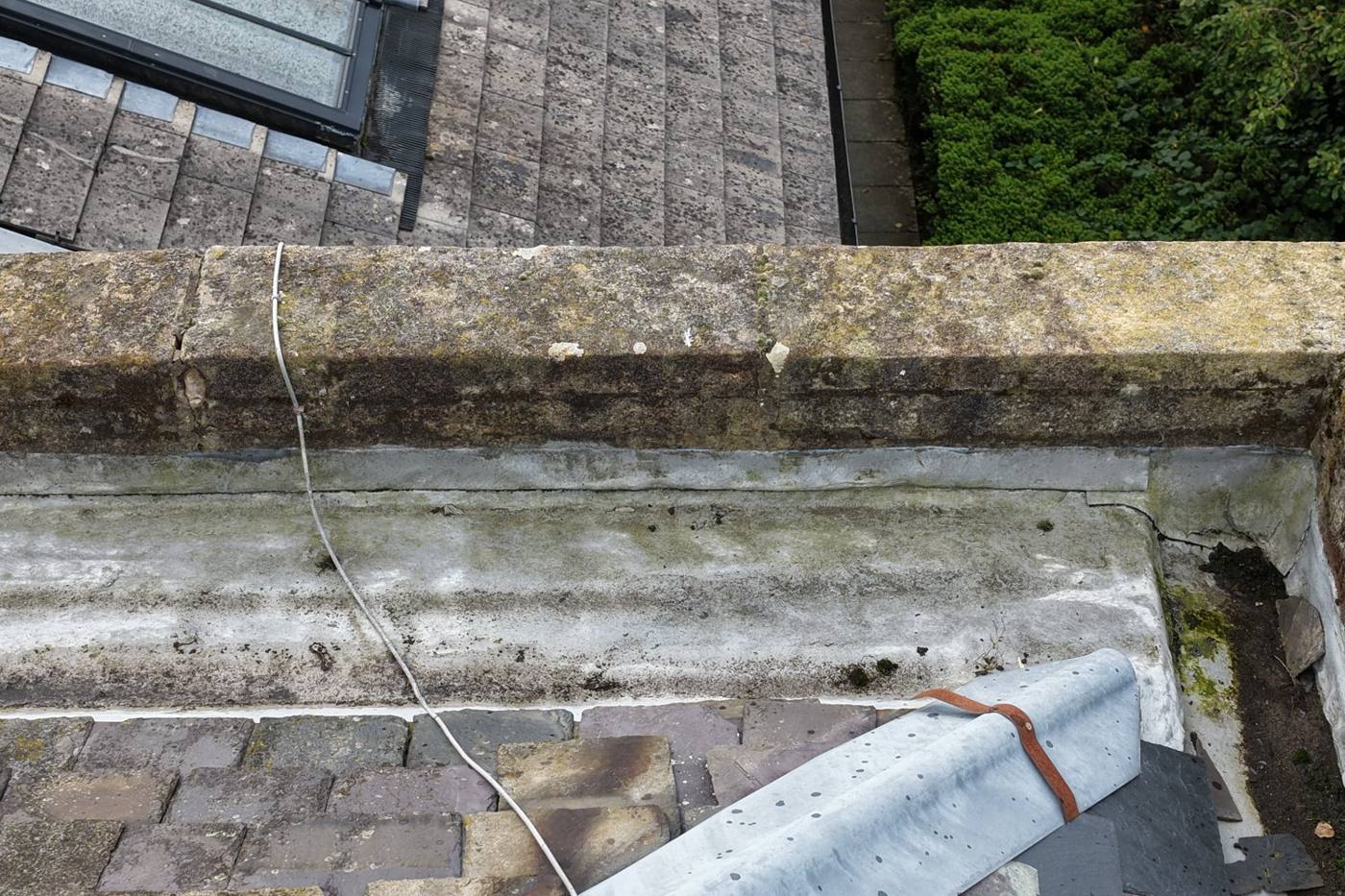

Vegetation in parapet joints and moss and debris in drainage channels were clearly recorded in the images. The report also noted serious deterioration of the parapet masonry and joints, recommending prompt specialist repairs to help mitigate water ingress.

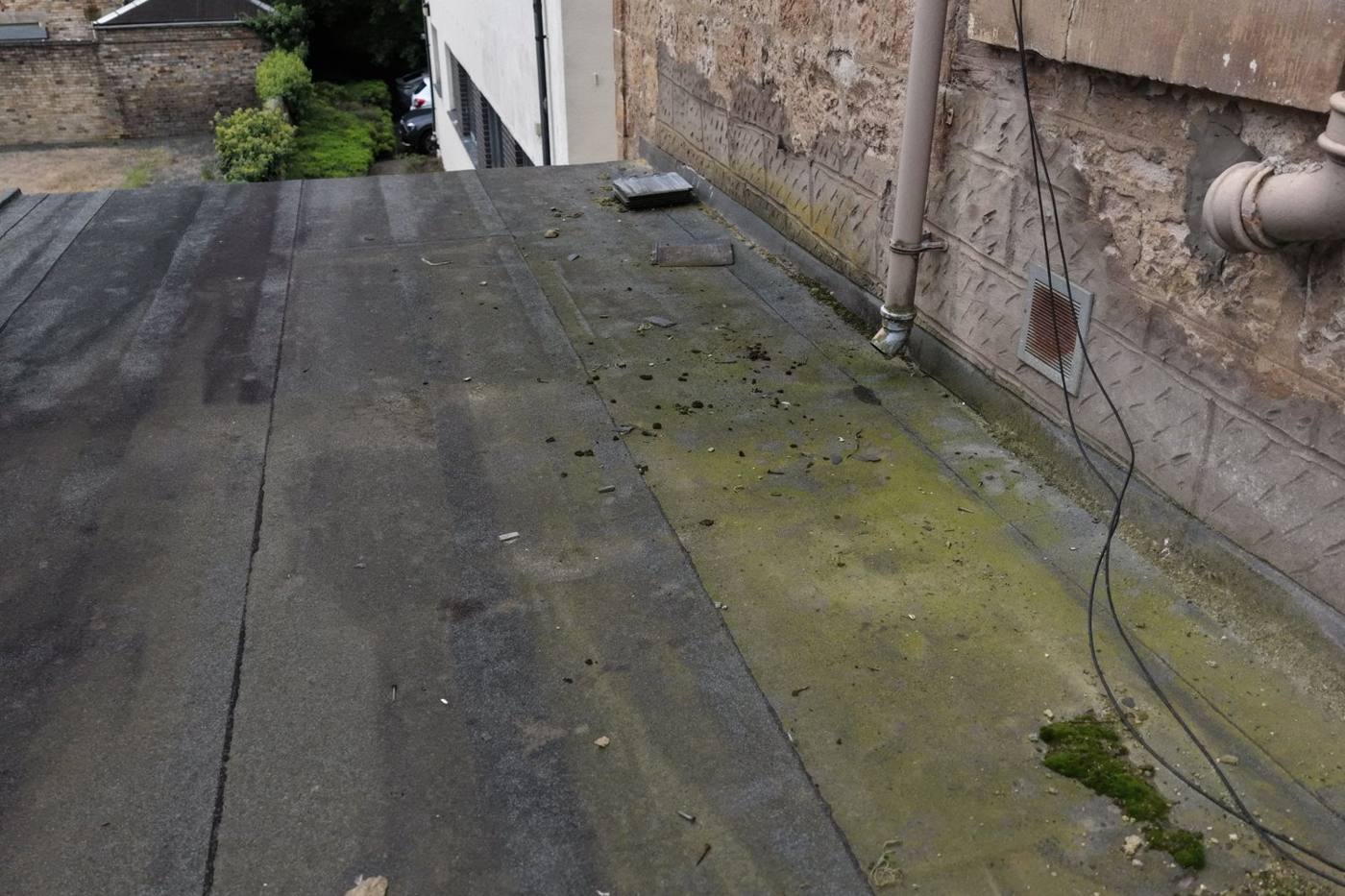

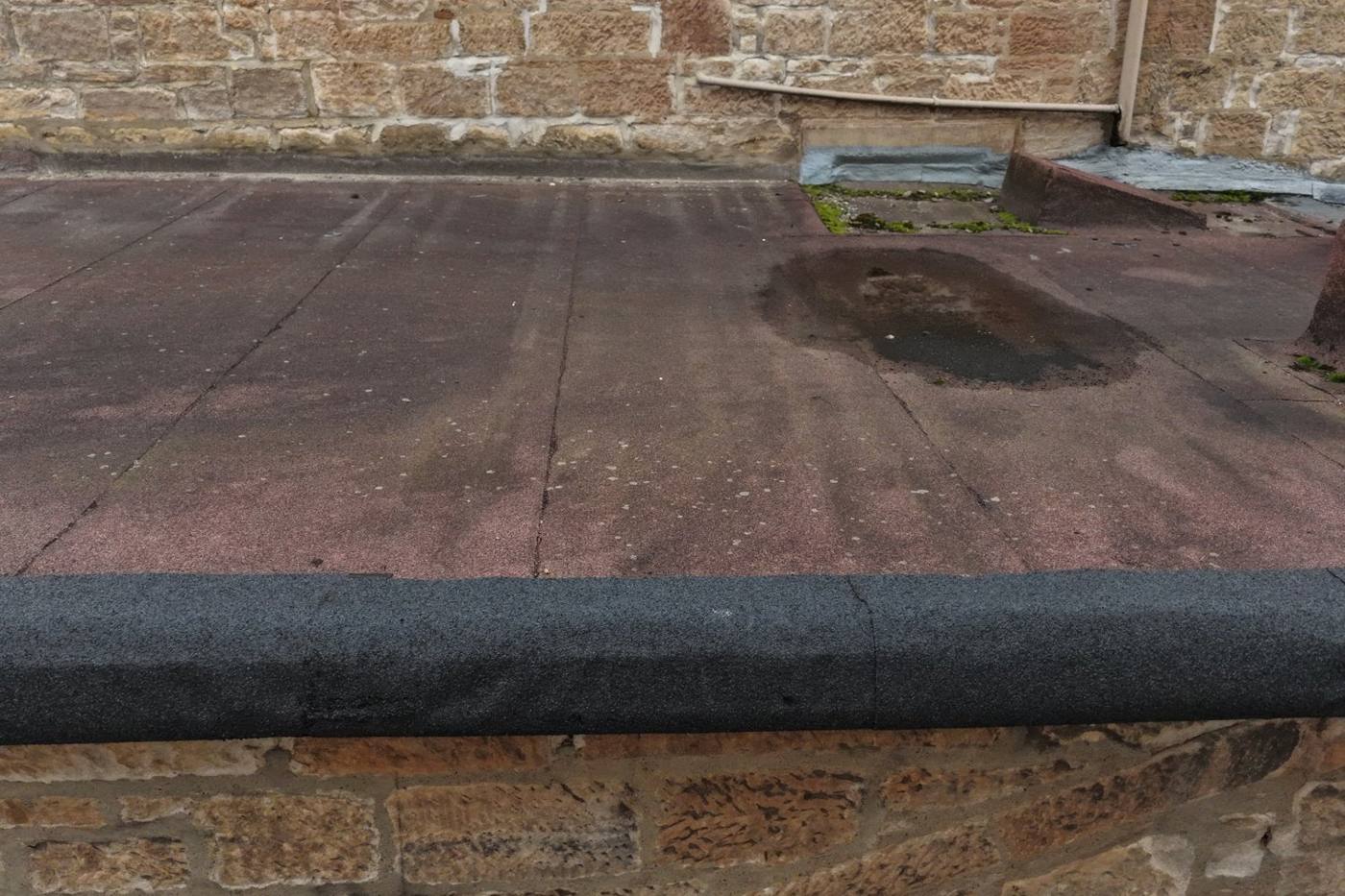

The felt covering was assessed as poor, with eroded surface protection, wrinkling and unsuitable edge detailing. The report recommended replacement planning and investigation of the deck and substrate before a new covering is installed. Ponding in the gutter and evidence of overflow or leakage at its end required prompt attention.

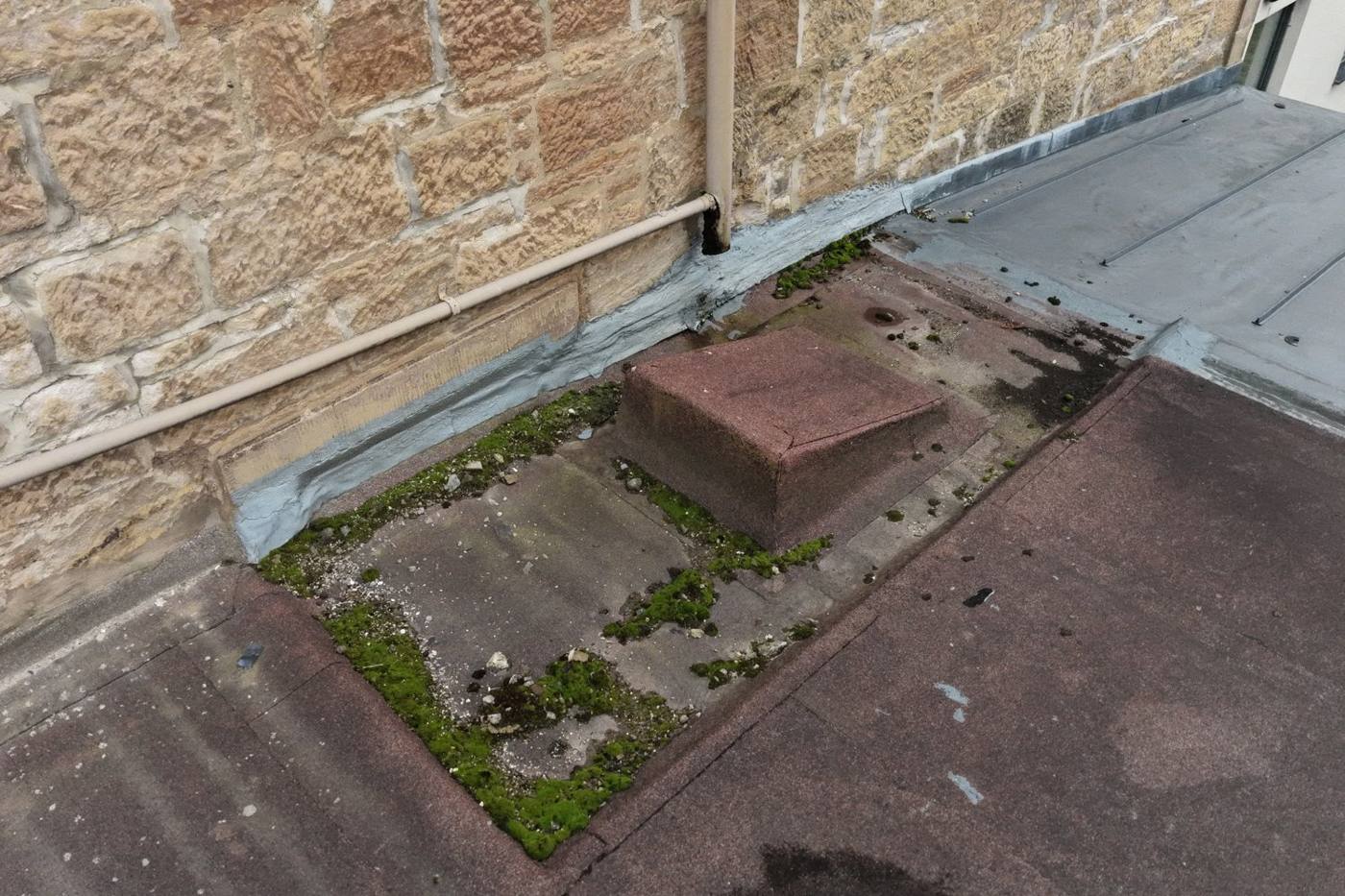

The surveyor identified poor upstand and perimeter details, ponding, covered-over rooflight features and problematic junctions between different roof materials. Replacement was recommended for 2027, with checks for trapped moisture and damage beneath the coverings. Drainage clearance and checks of gutter falls were also recommended before winter.

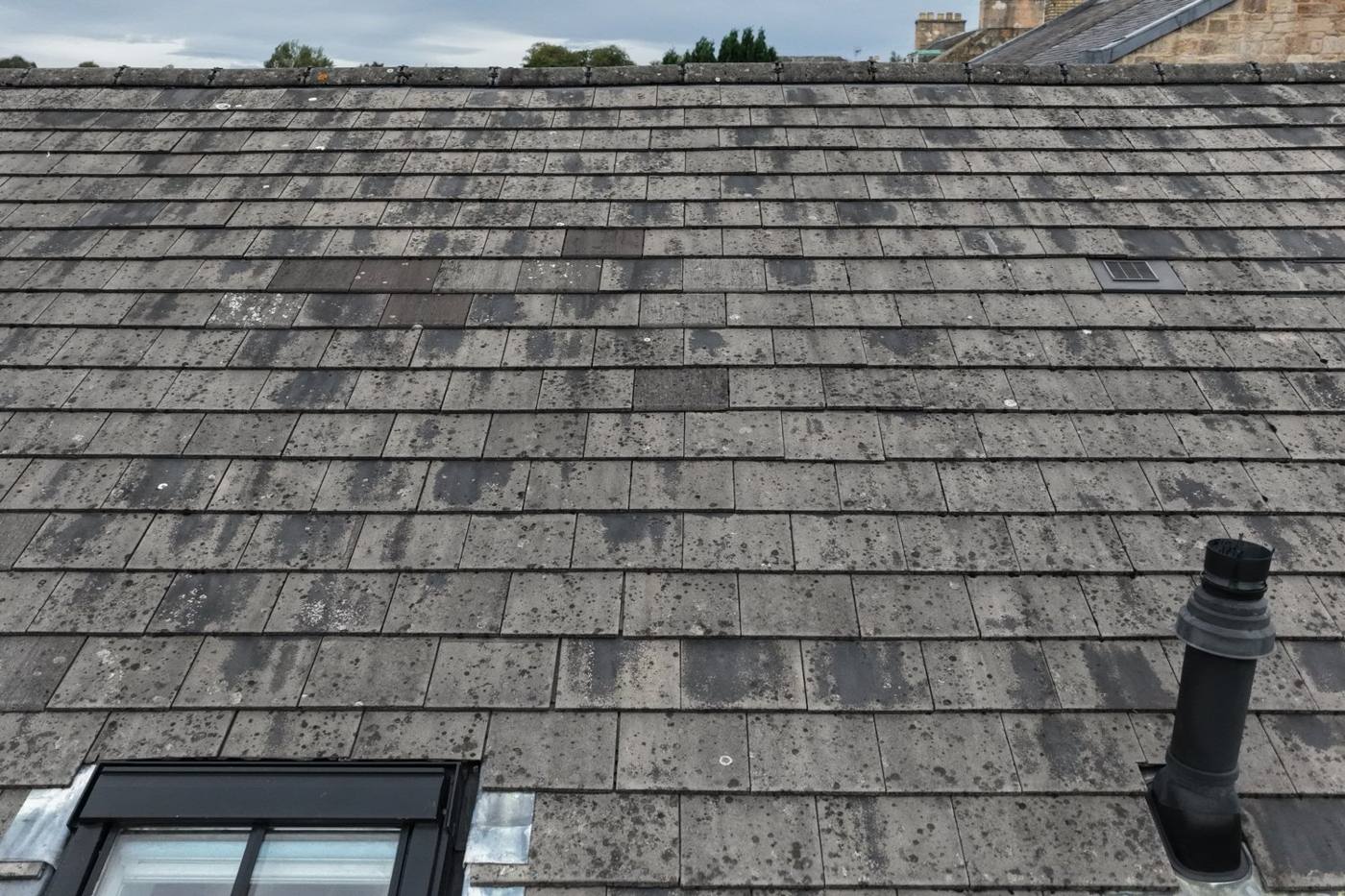

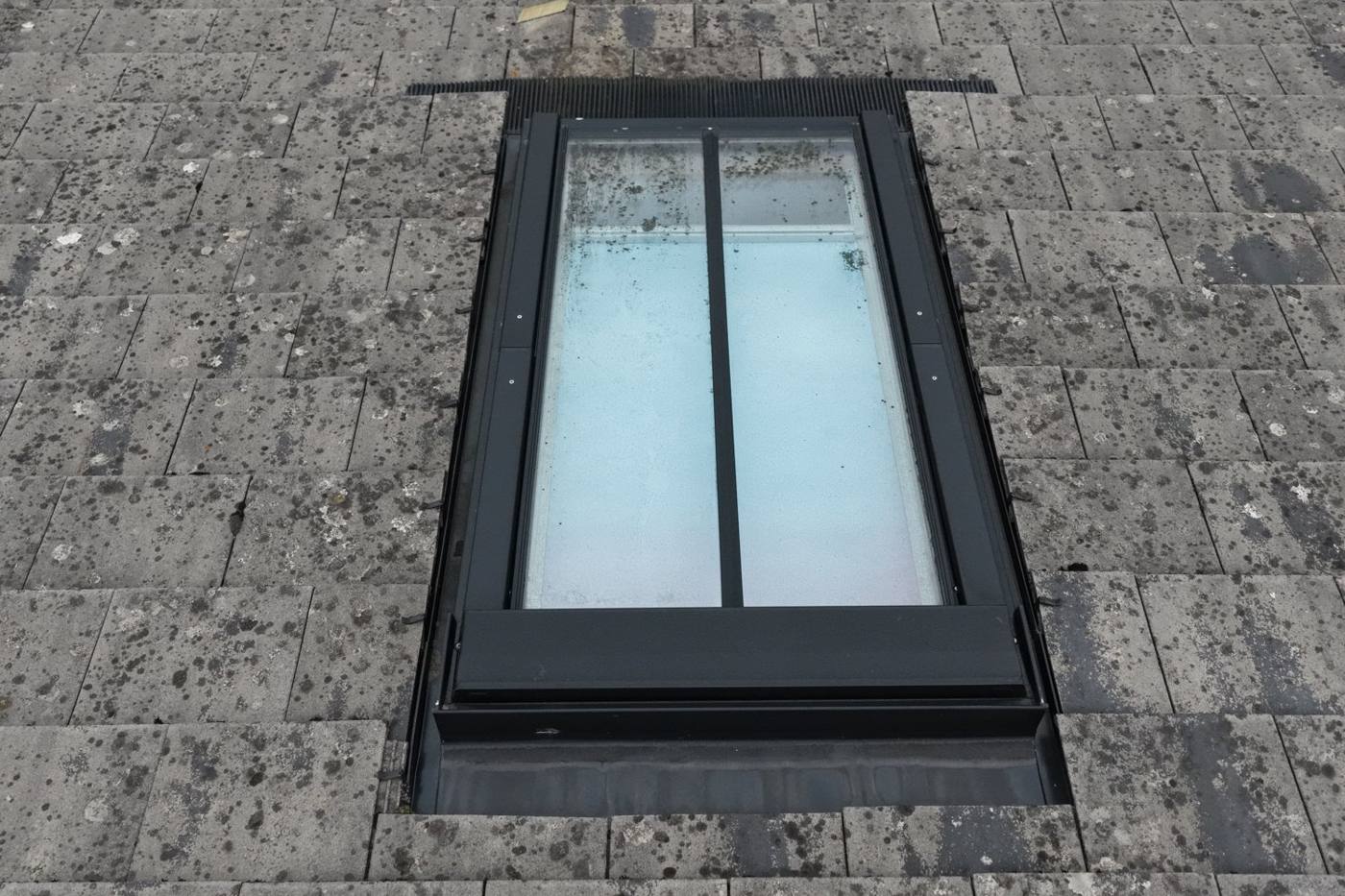

The link roof covering was considered acceptable, although its flashings and drainage needed attention or monitoring. The rear extension had ageing coverings, damaged or missing tiles, unsuitable patch repairs and defects around some rooflight details. The report recommended prompt or pre-winter repairs to affected areas, with replacement of the extension covering planned over the medium to long term.
The report identified a loose chimney-pot cap requiring removal as soon as possible, alongside chimney stonework, pointing and flashing repairs. It also warned that a defective main-roof rooflight should not be opened in its existing condition. These findings demonstrate the value of looking beyond the initially reported leak areas.
Scope of the assessment: The Chartered Surveyor prepared the report from the inspection imagery. Roof coverings were not lifted and concealed construction was not examined. Suspected moisture or substrate damage requires further investigation. This was not a full building survey, structural assessment or detailed repair specification.
From vegetation in parapet joints to weathered slate and flat-roof junctions, these photographs show why detailed roof-level evidence matters.
Swipe or scroll across the photographs. Select an image to see it in detail.
Tell us about your building, the areas of concern and the evidence you need. We provide drone roof inspections and Chartered Surveyor Roof Condition Reports across the UK and Ireland.
The completed Chartered Surveyor Roof Condition Report turned the photographic record into a prioritised assessment. It distinguished matters needing prompt attention, repairs to undertake before winter, roof areas to renew in 2027 and longer-term replacement planning for the rear extension.
The property team received the report and organised images together, giving it a clearer basis for discussing repair priorities, obtaining contractor quotations and planning budgets. The roof key helped connect the reported internal concerns with the relevant roof areas. It did not, on its own, establish the source of each leak.
This approach is useful for NHS medical centres, GP surgeries and other healthcare premises, as well as commercial buildings, schools and privately owned properties. Whether the concern is a recurring leak or the condition of a wider estate, the starting point is clear evidence of the roof as it was inspected.
A roof inspection is also an opportunity to identify routine maintenance needs beyond the original leak concern. Historic Environment Scotland’s traditional building maintenance guidance highlights gutter clearance and the need to cover every area of more complex roofs. The vegetation and drainage-channel photographs from this project illustrate why that wider view is useful.
Our facilities-management roof inspection service helps teams build that visual record, while a Chartered Surveyor roof condition report adds a professional assessment of the evidence.
Yes. Based in West Yorkshire, Rotorgraph Surveys travels throughout England, Scotland, Wales, Northern Ireland and the Republic of Ireland for drone roof inspections and Chartered Surveyor Roof Condition Reports. Each visit is planned around its location, access, weather and operating requirements.
Yes. We provide drone roof inspections for NHS GP premises and other healthcare properties, including work commissioned through facilities-management contractors. We plan the inspection around site access and the building’s surroundings. The scope and any arrangements needed around staff, visitors and entrances are discussed before attendance.
They can record visible defects and areas that warrant closer investigation. They cannot prove every water-entry route or reveal concealed damage. Internal leak locations and roof photographs should be considered together by the surveyor or roofing specialist.
This project’s completed report assessed each roof section, identified visible defects and set out repair and replacement priorities. It was prepared by a Chartered Surveyor using the inspection imagery. The non-invasive inspection did not include lifting coverings, opening up the roof or testing concealed components.
These photographs locate areas that may need maintenance and closer drainage checks. Their presence alone does not prove that they caused a leak; the condition of the channel, lining, outlets and adjoining details must also be considered.
The inspection took place on 24 September 2026, the report was completed on 26 September and it was delivered on 27 September: three calendar days from inspection to handover, ahead of the advised 5–10 working days. This was a project-specific result, not a guaranteed turnaround. We confirm timing for each instruction.
Yes. The same evidence-led approach supports homeowners, landlords, facilities managers and commercial property owners. Tell us the address, roof concerns and whether you need photography only or a Chartered Surveyor report.
Whether you manage an NHS medical centre, GP surgery, commercial portfolio or private home, distance need not limit access to clear roof evidence. Tell us your location, the problems you are experiencing and whether you need photography only or a Chartered Surveyor report.
